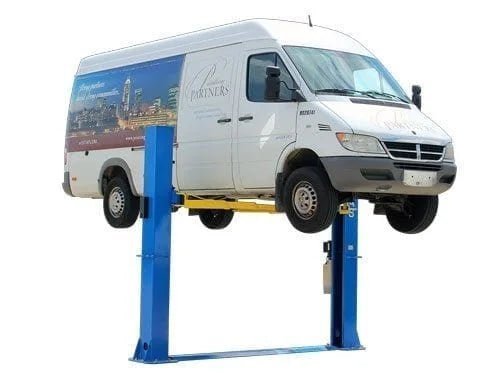

10,000 lb Capacity Commercial Grade BasePlate Lift

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop. 10,000 lb. Capacity Commercial Grade Baseplate, Open-Top Style Lift Overall Height: 111 7/8″ (9′ 3 7/8″) Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously Super-Symmetric Arms Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard Welded Support Gussets Increase Column Strength. Automatic Arm Restraints Powder Coat Finish Free 12 Piece Truck Adapter Set Shipping Weight: 1,640 LBS. 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only Atlas® ATTD-BP10000X Specifications Capacity 10,000 LB. Overall Height 111 7/8″ (9′ 3 7/8″) Overall Floor Width 139 1/8″ (11′ 7 1/8″) Outside Column to Outside Column 134 1/2″ (11′ 2 1/2″) Maximum Lift Height (Without Adapters) 77 3/8″ Maximum Lift Height (With Adapters) 86 3/8″ Minimum Arm Height 4″ Inside Column 112 1/4″ (9′ 4 1/4″) Drive Thru 101 1/4″ (8′ 5 1/4″) Column Size 9 1/2″ x 11″ Column Thickness of Steel 6mm Base Of Lift 17 1/2″ x 21 1/2″ Motor/Electrical Requirement 220 volt single (1) phase. A 30 amp breaker is recommended Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,640 LBS. Adapter Heights 4 Each 2″, 3″, 6″ Arm Hole/Adapter Peg Size 1.5″ Requires a minimum of 4″ of concrete with a 3000 psi. rating WEIGHT 1640 lbs BRAND Atlas
