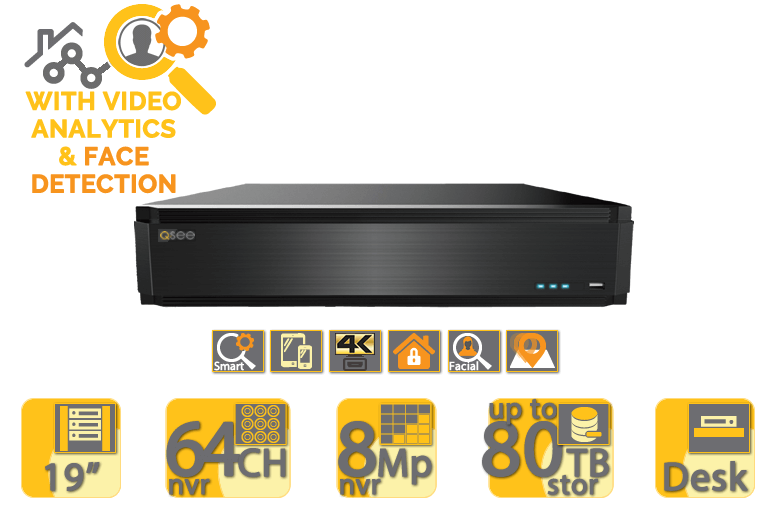

64 Ch QT3364-8 NVR

Q-See QT3364-8 NVR : 64 Channel : 8MP 3840×2160 : 320Mbps : 2x 10/100/1000 : 8x SATA : H.265 : 1x HDMI-4K-Out, 1x HDMI-Out : VGA-Out : Alarm 8x In 4x out : 2x eSATA : 2RU : Face Detection : Perimeter People/Car/Bike : People Counting : People Density : Deep Learning   This is the newest generation commercial grade Network Video Recorder from Q-See.  It is feature packed with the latest technology for Video Surveillance perfectly suited for Australian business use with full support for Intelligent Video Analytics, Face Detection and Perimeter Alert cameras. With support for up to 64x 8 Megapixel cameras the Q-See QT3364 is the ideal NVR for deployment into commercial and industrial locations with 32 to 64 camera requirements.  As part of the Q-See range this recorder can be controlled by a central Camera Management Server (CMS) for robust, reliable remote video management and monitoring. Key Features: Q-See QT3364-8 64 Channel 8MP Resolution at 3840×2160 per camera Support for both H.264 and the latest H.265 compression CODECs for high quality video at maximum compression ONVIF 2.3 conformance 4K output for true ultra high def viewing.  HDMI x2 (1x of 4Kx2K, 1x of 1920×1080 & 1280×1024) VGA x1 (1920×1080 & 1280×1024) 16 channel simultaneous playback 320Mbps total network access bandwidth processing capacity 8MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P @ 25 and 30fps Dual stream recording with manual, timer, motion and sensor based triggering 8 channel local alarm input and 4 channel output 2x 10/100/1000 RJ45 Ethernet LAN port in dual or redundant mode TCP/IP, PPPoE, DHCP, DNS, DDNS, uPnP, NTP and SMTP support Up to 8x SATA 3.5″ drives with RAID options eSATAx2 expansion ports 2x USB 2.0 and 1x USB 3.0 port Remote control ≤15W power consumption hard drive power 2RU 445×436×90(W×D×H) The QT3364-8 is designed for deployments of many cameras typically distributed over large areas.  As such camera power and Ethernet switching is typically provided by dedicated and distributed PoE access switches, PoE range extenders and PoE splitters.  Ethernet and IP design is an important consideration and a free consultation is recommended for the design, installation and configuration of switches.  Q-See access switches are available in 8, 16 and 24 ports to aggregate cameras and back haul to the QT3364-8. H.265 Compression The QT3364 support up to 8 SATA storage drives up to 10TB capacity which when combined with the newest H.265 compression codec ensures this unit is more than able to record and store the highest quality video feeds from 2 to 8MP cameras.  Storage can be set into capture pools with or without drives set in hardware RAID arrays.  Backup can be added via optional eSATA drives and eSATA drive arrays in addition to the standard USB 3.0 port to external portable hard drives. The H.265 new generation video codec requires half the storage of the older H.264 compression .   HDMI-4K 8MP Ultra High Definition Input and Output The QT3364 NVR supports up to 320Mbps of video stream aggregate bandwidth for camera streams in full 25fps 8MP 3840×2160 resolution.  Video streams can be reflected back out to the network on to other NVRs, Video Surveillance Servers, management PCs and display screens and walls.   Output is via 1 HDMI-4Kx2K port, 1 HDMI-1K port and a standard VGA port.  These can be used in a variety of ways to distribute the displays in various modes across multiple display devices.  HDMI extenders and splitters can be used.       Q-See’s QT View for IPHONE, IPAD and ANDROID SMARTPHONES puts the power of peace-of-mind literally at your fingertips.  Designed to work with our QT-series security DVR and NVRs, QT-View allows you to check in on your property, business or loved ones anywhere, at any time. Receive instant e-mail alerts and see what’s going on with the swipe of a finger. View live feeds from up to four cameras simultaneously. QT View takes full advantage of touch-screen technology to allow you to add or change video feeds, play back video or even control a pan-tilt-zoom camera . You can even take still images and save them on your phone or send them as e-mail attachments. Smart Video Analytics The QT878/3332x-x/3364x-x/35128-16A2 all support the new range of Video Analytic Cameras from Q-See such as the QNT8053D and QTN8098B. Detect if the stable part of a scene permanently changes with adjustable time sensitivitiesAlert on camera blur detection through fogging, deliberate smearing or otherwise.Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.Provides alerts when objects (usually people) cross a line in either one direction, the other or both.Detect when an object has been added or removed from a scene. Great for lost item recovery.Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc   Specifications Model QT3332-8 QT3364-8 System Compression Standard H.265 and H.264 Standard H.265 and H.264 Main Processing Chip ARM Cortex A17 ARM Cortex A17 OS Embedded Linux Embedded Linux Video Network Access Bandwidth 256Mbps incoming, 256Mbps outgoing 320Mbps incoming, 320Mbps outgoing Input Resolution 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time Network Access 32 CH IPC input 64 CH IPC input Output HDMI 1 : 3840×2160@60fps down to 1024×768 HDMI 2 : 1920×1080/1280×1024 VGA×1:1920×1080/1280×1024 HDMI 1 : 3840×2160@60fps down to 1024×768 HDMI 2 : 1920×1080/1280×1024 VGA×1:1920×1080/1280×1024 Audio Input 32 CH IPC audio input with G.711(U/A) compression 64 CH IPC audio input with G.711(U/A) compression 2-way Audio RCA×1 RCA×1 Local Output RCA×1 RCA×1 Record Resolution 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time Frame Rate PAL @ 25fps & NTSC @ 30fps PAL @ 25fps & NTSC @ 30fps Bit Stream 32Kbps-12Mbps 32Kbps-12Mbps Image Quality 5 Level 5 Level Recording Stream Dual stream recording Dual stream recording Record on mode Manual, timer, motion, sensor, smart events Manual, timer, motion, sensor, smart events Playback Simultaneous Playback Max 16 CH Max 16 CH Live View / Decoding 1CH 8MP / 4 CH 5MP / 9 CH 720P/ 16CH 720P 1CH 8MP / 4 CH 5MP / 9 CH 720P/ 16CH 720P Search Time slice / time / event / tag search Time slice / time / event / tag search Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Functions Play, Pause, Fast Play Forward, Fast Play Rewind, Digital Zoom Play, Pause, Fast Play Forward, Fast Play Rewind, Digital Zoom Alarm Mode Manual, sensor, motion, exception, smart events Manual, sensor, motion, exception, smart events Input 8 CH local alarm input; supports IPC alarm input 8 CH local alarm input; supports IPC alarm input Output 4 CH 4 CH Triggering Record, snapshot, buzzer, preset, e-mail, mobile push Record, snapshot, buzzer, preset, e-mail, mobile push Network Interface RJ45 10/100/1000 Mbps × 2 RJ45 10/100/1000 Mbps × 2 Network Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x Storage HDD SATA×8, eSATA×2 SATA×8, eSATA×2 Array RAID0, RAID1, RAID5, RAID6, RAID10 RAID0, RAID1, RAID5, RAID6, RAID10 Max Capacity per HDD 10TB A.I. surveillance grade 10TB A.I. surveillance grade Backup USB Backup Yes Yes eSata Backup Yes Yes Network Backup Yes Yes Interface Alarm In 8 8 Alarm Output 4 4 Communication RS485 full duplex for PTZ and keyboard RS485 full duplex for PTZ and keyboard Remote Yes Yes USB USB2.0×2( one in the front panel and the other in the rear panel ), USB 3.0×1( rear panel ) USB2.0×2( one in the front panel and the other in the rear panel ), USB3.0×1( rear panel ) Others Case 2U 2U Dimensions(mm ) 445×436×90(W×D×H) 445×436×90(W×D×H) Power Supply ATX 250W ATX 250W Consumption ≤ 15W ( without HDD ) ≤ 15W ( without HDD ) Work Environment -10 ～ 50 ℃，10% ～ 90% humidity -10 ～ 50 ℃，10% ～ 90% humidity
